CyberTalents Forensics Eagle Eye Writeup

SYS_DATE: 2021-08-03 00:00 | SIZE: 1953 words
#Forensics #Volatility #Memory

Eagle Eye

  • Eagle eye is a memory forensics challenge rated between hard and insane, as of writing this writeup the challenge has 15 solves in 4 months

TL:DR

  • Windows memory forensics using volatility2

  • using mftdump vol2 plugin

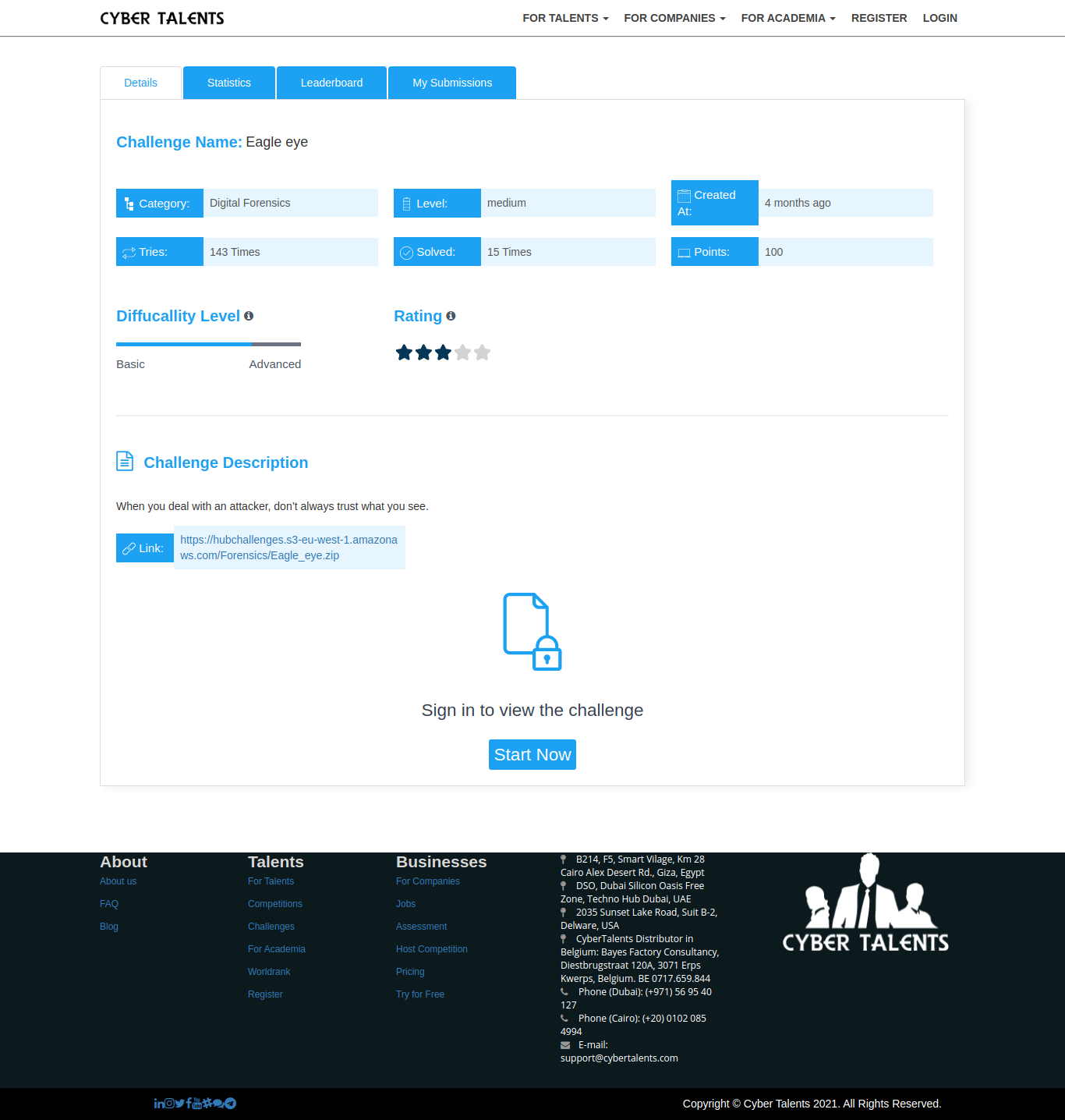

Challenge Description

When you deal with an attacker, don’t always trust what you see.

Solution

  • Inorder to solve this challenge successfully we are to first determine a suitable profile to use.

using the syntax

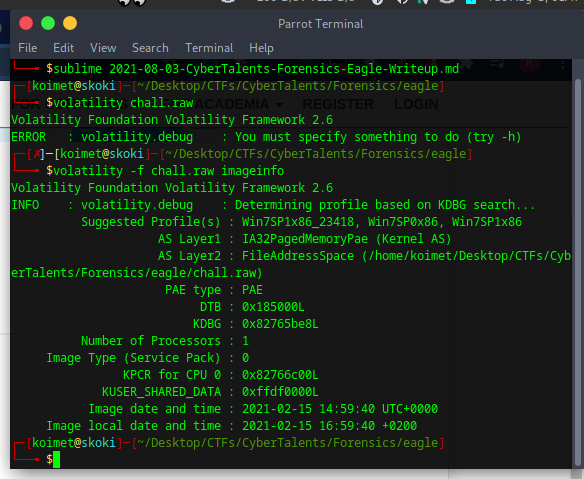

1volatility -f chall.raw imageinfo

running the command above we get a list of viable profiles, for this writeup i will use the first one Win7SP1x86_23418


my initial analysis included checking for low hanging fruits, this included checking for rogue processes, files on the machine,browser histories,recent commands on the machine to no success.

but going back to the challenge description there’s a hint ...don't always trust what you see

for this i thought of MTFdump plugin for further analysis.

syntax for the command

1volatility -f chall.raw --profile Win7SP1x86_23418 mftdump > mftdump

after running for a while we get our mftdump data

which we start grepping and searching for strings that can and probably will match our flag format in this case flag{.*} since manual analysis would have been impossible as there were around 38054 lines of data to look at

searching for the string flag we get a hit

 1$FILE_NAME
 2Creation                       Modified                       MFT Altered                    Access Date                    Name/Path
 3------------------------------ ------------------------------ ------------------------------ ------------------------------ ---------
 42021-02-15 14:09:51 UTC+0000 2021-02-15 14:19:44 UTC+0000   2021-02-15 14:19:44 UTC+0000   2021-02-15 14:09:51 UTC+0000   $Recycle.Bin\S-1-5-21-4163927476-1738762144-3755410103-1000\$R1ZVDL9.cpp
 5
 6$OBJECT_ID
 7Object ID: f0aa160a-956f-eb11-be46-0800273856bc
 8Birth Volume ID: 80000000-1802-0000-0000-180000000600
 9Birth Object ID: fb010000-1800-0000-2369-6e636c756465
10Birth Domain ID: 203c696f-7374-7265-616d-3e0d0a766f69
11
12$DATA
130000000000: 23 69 6e 63 6c 75 64 65 20 3c 69 6f 73 74 72 65   #include.<iostre
140000000010: 61 6d 3e 0d 0a 76 6f 69 64 20 66 6c 61 67 28 29   am>..void.flag()
150000000020: 3b 0d 0a 75 73 69 6e 67 20 6e 61 6d 65 73 70 61   ;..using.namespa
160000000030: 63 65 20 73 74 64 3b 0d 0a 69 6e 74 20 6d 61 69   ce.std;..int.mai
170000000040: 6e 28 29 7b 0d 0a 0d 0a 66 6c 61 67 28 29 3b 0d   n(){....flag();.
180000000050: 0a 77 68 69 6c 65 28 74 72 75 65 29 7b 0d 0a 7d   .while(true){..}
190000000060: 0d 0a 72 65 74 75 72 6e 20 30 3b 0d 0a 7d 0d 0a   ..return.0;..}..
200000000070: 0d 0a 76 6f 69 64 20 66 6c 61 67 28 29 7b 0d 0a   ..void.flag(){..
210000000080: 63 68 61 72 20 78 5b 32 36 5d 3b 0d 0a 69 6e 74   char.x[26];..int
220000000090: 20 6e 3d 30 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 66   .n=0;..x[n++]='f
2300000000a0: 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 6c 27 3b 0d   ';..x[n++]='l';.
2400000000b0: 0a 78 5b 6e 2b 2b 5d 3d 27 61 27 3b 0d 0a 78 5b   .x[n++]='a';..x[
2500000000c0: 6e 2b 2b 5d 3d 27 67 27 3b 0d 0a 78 5b 6e 2b 2b   n++]='g';..x[n++
2600000000d0: 5d 3d 27 32 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27   ]='2';..x[n++]='
2700000000e0: 3a 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 5f 27 3b   :';..x[n++]='_';
2800000000f0: 0d 0a 78 5b 6e 2b 2b 5d 3d 27 53 27 3b 0d 0a 78   ..x[n++]='S';..x
290000000100: 5b 6e 2b 2b 5d 3d 27 59 27 3b 0d 0a 78 5b 6e 2b   [n++]='Y';..x[n+
300000000110: 2b 5d 3d 27 53 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d   +]='S';..x[n++]=
310000000120: 27 5f 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 50 27   '_';..x[n++]='P'
320000000130: 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 72 27 3b 0d 0a   ;..x[n++]='r';..
330000000140: 78 5b 6e 2b 2b 5d 3d 27 63 27 3b 0d 0a 78 5b 6e   x[n++]='c';..x[n
340000000150: 2b 2b 5d 3d 27 65 27 3b 0d 0a 78 5b 6e 2b 2b 5d   ++]='e';..x[n++]
350000000160: 3d 27 33 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 33   ='3';..x[n++]='3
360000000170: 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 5f 27 3b 0d   ';..x[n++]='_';.
370000000180: 0a 78 5b 6e 2b 2b 5d 3d 27 34 27 3b 0d 0a 78 5b   .x[n++]='4';..x[
380000000190: 6e 2b 2b 5d 3d 27 74 27 3b 0d 0a 78 5b 6e 2b 2b   n++]='t';..x[n++
3900000001a0: 5d 3d 27 34 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27   ]='4';..x[n++]='
4000000001b0: 4c 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 4c 27 3b   L';..x[n++]='L';
4100000001c0: 0d 0a 78 5b 6e 2b 2b 5d 3d 27 7d 27 3b 0d 0a 66   ..x[n++]='}';..f
4200000001d0: 6f 72 20 28 69 6e 74 20 69 20 3d 30 3b 20 69 3c   or.(int.i.=0;.i<
4300000001e0: 6e 3b 69 2b 2b 29 7b 0d 0a 09 28 78 5b 6e 5d 29   n;i++){...(x[n])
4400000001f0: 3b 0d 0a 7d 0d 0a 7d 0d 0a 0d 0a                  ;..}..}....
45
46***************************************************************************
47***************************************************************************
48MFT entry found at offset 0x8051c00
49Attribute: File
50Record Number: 47867
51Link count: 2

which looks like a hexdump of a cpp code …

i simply copied it and converted the data back to a readable code

 10000000000: 23 69 6e 63 6c 75 64 65 20 3c 69 6f 73 74 72 65   #include.<iostre
 20000000010: 61 6d 3e 0d 0a 76 6f 69 64 20 66 6c 61 67 28 29   am>..void.flag()
 30000000020: 3b 0d 0a 75 73 69 6e 67 20 6e 61 6d 65 73 70 61   ;..using.namespa
 40000000030: 63 65 20 73 74 64 3b 0d 0a 69 6e 74 20 6d 61 69   ce.std;..int.mai
 50000000040: 6e 28 29 7b 0d 0a 0d 0a 66 6c 61 67 28 29 3b 0d   n(){....flag();.
 60000000050: 0a 77 68 69 6c 65 28 74 72 75 65 29 7b 0d 0a 7d   .while(true){..}
 70000000060: 0d 0a 72 65 74 75 72 6e 20 30 3b 0d 0a 7d 0d 0a   ..return.0;..}..
 80000000070: 0d 0a 76 6f 69 64 20 66 6c 61 67 28 29 7b 0d 0a   ..void.flag(){..
 90000000080: 63 68 61 72 20 78 5b 32 36 5d 3b 0d 0a 69 6e 74   char.x[26];..int
100000000090: 20 6e 3d 30 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 66   .n=0;..x[n++]='f
1100000000a0: 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 6c 27 3b 0d   ';..x[n++]='l';.
1200000000b0: 0a 78 5b 6e 2b 2b 5d 3d 27 61 27 3b 0d 0a 78 5b   .x[n++]='a';..x[
1300000000c0: 6e 2b 2b 5d 3d 27 67 27 3b 0d 0a 78 5b 6e 2b 2b   n++]='g';..x[n++
1400000000d0: 5d 3d 27 32 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27   ]='2';..x[n++]='
1500000000e0: 3a 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 5f 27 3b   :';..x[n++]='_';
1600000000f0: 0d 0a 78 5b 6e 2b 2b 5d 3d 27 53 27 3b 0d 0a 78   ..x[n++]='S';..x
170000000100: 5b 6e 2b 2b 5d 3d 27 59 27 3b 0d 0a 78 5b 6e 2b   [n++]='Y';..x[n+
180000000110: 2b 5d 3d 27 53 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d   +]='S';..x[n++]=
190000000120: 27 5f 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 50 27   '_';..x[n++]='P'
200000000130: 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 72 27 3b 0d 0a   ;..x[n++]='r';..
210000000140: 78 5b 6e 2b 2b 5d 3d 27 63 27 3b 0d 0a 78 5b 6e   x[n++]='c';..x[n
220000000150: 2b 2b 5d 3d 27 65 27 3b 0d 0a 78 5b 6e 2b 2b 5d   ++]='e';..x[n++]
230000000160: 3d 27 33 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 33   ='X;..x[n++]='3
240000000170: 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 5f 27 3b 0d   ';..x[n++]='_';.
250000000180: 0a 78 5b 6e 2b 2b 5d 3d 27 34 27 3b 0d 0a 78 5b   .x[n++]='X;..x[
260000000190: 6e 2b 2b 5d 3d 27 74 27 3b 0d 0a 78 5b 6e 2b 2b   n++]='X;..x[n++
2700000001a0: 5d 3d 27 34 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27   ]='X;..x[n++]='
2800000001b0: 4c 27 3b 0d 0a 78 5b 6e 2b 2b 5d 3d 27 4c 27 3b   L';..x[n++]='L';
2900000001c0: 0d 0a 78 5b 6e 2b 2b 5d 3d 27 7d 27 3b 0d 0a 66   ..x[n++]='}';..f
3000000001d0: 6f 72 20 28 69 6e 74 20 69 20 3d 30 3b 20 69 3c   or.(int.i.=0;.i<
3100000001e0: 6e 3b 69 2b 2b 29 7b 0d 0a 09 28 78 5b 6e 5d 29   n;i++){...(x[n])
3200000001f0: 3b 0d 0a 7d 0d 0a 7d 0d 0a 0d 0a                  ;..}..}....

then

cat hexdump | xxd -r > code.cpp

after beautifying the code we get the second part of the Flag

 1#include <iostream>
 2
 3void flag();
 4using namespace std;
 5int main() {
 6  flag();
 7  while (true) {
 8
 9  }
10  return 0;
11}
12
13void flag() {
14  char x[26];
15  int n = 0;
16  x[n++] = 'f';
17  x[n++] = 'l';
18  x[n++] = 'a';
19  x[n++] = 'g';
20  x[n++] = '2';
21  x[n++] = ':';
22  x[n++] = '_';
23  x[n++] = 'S';
24  x[n++] = 'Y';
25  x[n++] = 'S';
26  x[n++] = '_';
27  x[n++] = 'P';
28  x[n++] = 'r';
29  x[n++] = 'c';
30  x[n++] = 'e';
31  x[n++] = '3';
32  x[n++] = '3';
33  x[n++] = '_';
34  x[n++] = '4';
35  x[n++] = 't';
36  x[n++] = 'X;
37  x[n++] = 'X;
38  x[n++] = 'X;
39  x[n++] = '}';
40  for (int i = 0; i < n; i++) {
41    cout << x << "\n";
42  }
43}

redacted some chars off the flag to curb laziness XD

it was just a basic C++ code that loops through the Flag characters

compiling it and running it gives us

 1$./code
 2flag2:_SYS_Prce33_4txx}
 3flag2:_SYS_Prce33_4t4xx}
 4flag2:_SYS_Prce33_4t4xx}
 5flag2:_SYS_Prce33_4t4xx}
 6flag2:_SYS_Prce33_4t4xx}
 7flag2:_SYS_Prce33_4t4xx}
 8flag2:_SYS_Prce33_4t4xx}
 9flag2:_SYS_Prce33_4t4xx}
10flag2:_SYS_Prce33_4t4xx}
11flag2:_SYS_Prce33_4t4xx}
12flag2:_SYS_Prce33_4t4xx}
13flag2:_SYS_Prce33_4t4xx}
14flag2:_SYS_Prce33_4t4xx}
15flag2:_SYS_Prce33_4t4xx}
16flag2:_SYS_Prce33_4t4xx}
17flag2:_SYS_Prce33_4t4xx}
18flag2:_SYS_Prce33_4t4xx}
19flag2:_SYS_Prce33_4t4xx}
20flag2:_SYS_Prce33_4t4xx}
21flag2:_SYS_Prce33_4t4xx}
22flag2:_SYS_Prce33_4t4xx}
23flag2:_SYS_Prce33_4t4xx}
24flag2:_SYS_Prce33_4t4xx}
25flag2:_SYS_Prce33_4t4xx}

Armed with the second part of the flag, we go back hunting for the first part inorder to get the full flag

searching for string part in the mftdump we are gifted with the first part

 1$FILE_NAME
 2Creation                       Modified                       MFT Altered                    Access Date                    Name/Path
 3------------------------------ ------------------------------ ------------------------------ ------------------------------ ---------
 42021-02-15 13:31:58 UTC+0000 2021-02-15 14:35:19 UTC+0000   2021-02-15 14:35:19 UTC+0000   2021-02-15 13:31:58 UTC+0000   Users\MM0X\Desktop\1st.txt
 5
 6$OBJECT_ID
 7Object ID: 60948d0e-926f-eb11-8c93-0800273856bc
 8Birth Volume ID: 80000000-8000-0000-0000-180000000100
 9Birth Object ID: 61000000-1800-0000-596f-7520476f7420
10Birth Domain ID: 4d652062-7574-2074-6861-742773206f6e
11
12$DATA
130000000000: 59 6f 75 20 47 6f 74 20 4d 65 20 62 75 74 20 74   You.Got.Me.but.t
140000000010: 68 61 74 27 73 20 6f 6e 6c 79 20 74 68 65 20 66   hat's.only.the.f
150000000020: 69 72 73 74 20 48 61 6c 66 20 66 69 6e 64 20 74   irst.Half.find.t
160000000030: 68 65 20 54 68 65 20 72 65 73 74 20 4f 46 20 69   he.The.rest.OF.i
170000000040: 74 20 0d 0a 0d 0a 31 73 74 70 61 72 74 3a 7b 44   t.....1stpart:{D
180000000050: 6f 6e 30 74 5f 61 6c 77 34 79 73 5f 54 52 75 73   on0t_xxxxxx_Txxx
190000000060: 74                                                x
20
21***************************************************************************
22***************************************************************************
23MFT entry found at offset 0x28eb000
24Attribute: In Use & File
25Record Number: 33636
26Link count: 1

converting the hexdump back to readable format we can read off the First part of the flag as

1cat 1st.txt
2You Got Me but that's only the first Half find the The rest OF it
3
41stpart:{Don0t_xxxxxx_TRxxx

combining both parts we get the flag as

Flag : flag{Don0t_xxxxxx_TRxxx_SYS_Prce33_4t4xx}

hoping that was the intended solution :)

for any clarification or suggestions including more writeups kindly reach me on twitter
